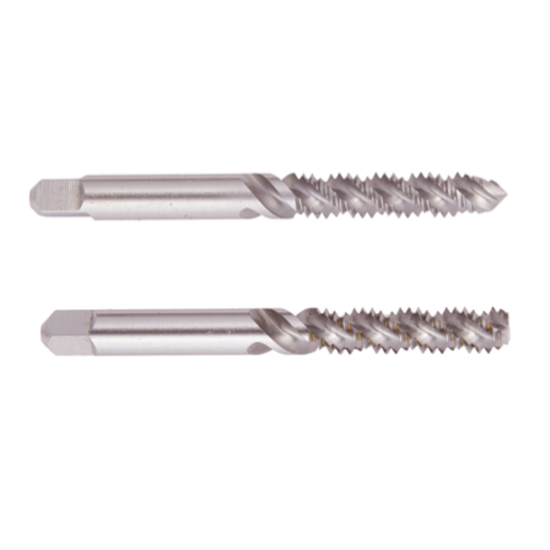

REGAL 008424AS 5/16-24.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008424AS
Delivery date: 3-5 days
$15.79

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Made In USA Yes
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Tap Chamfer 4.0P-5.0P
Thread Size 5/16"
Flute Direction R - Right
Overall Len 2.7180 69.04MM
Length Type Standard
Tap Square 0.2380
Tap Type Plug
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Thread Limit H3/GH3
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tap Style Hand Tap
Thread Pitch 24.00TPI
Flutes/Inserts 3
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
