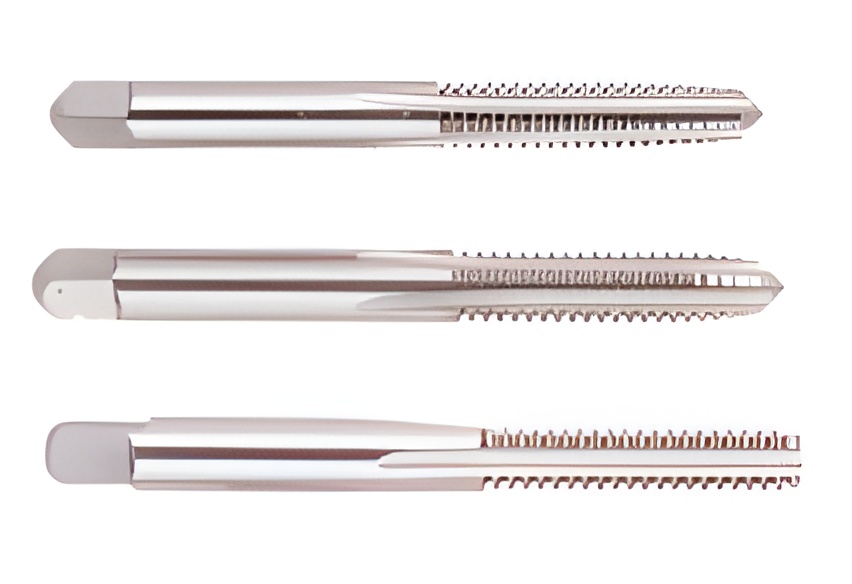

Picture of Regal 008407AS 5/16-24.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated

Regal 008407AS 5/16-24.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated

Part Number: REG008407AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$7.31
SKU: 1175200

Description

REGAL 5/16"x24.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Hand Tap
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 2.7180 69.04MM
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 4
Thread Pitch 24.00TPI
Thread Size 5/16"
Tap Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Square 0.2380
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
