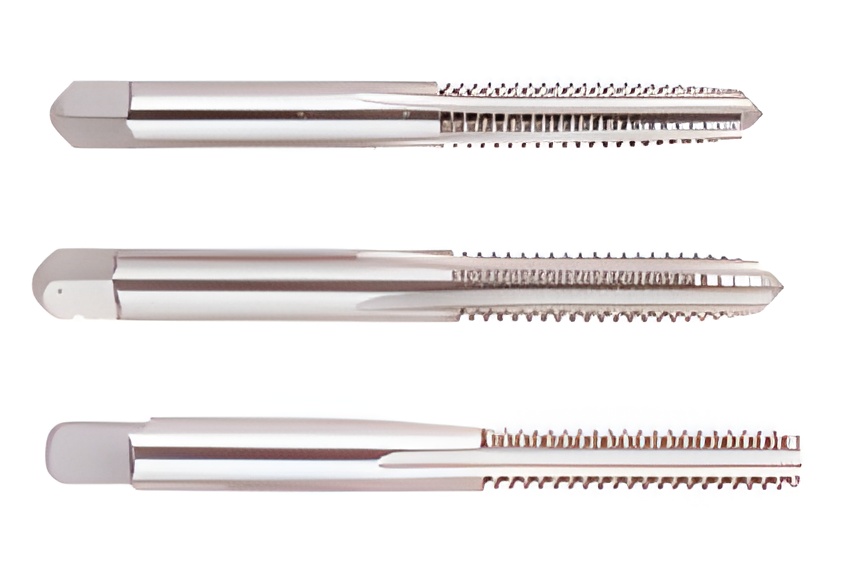

Picture of Regal 008406AS 5/16-24.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Regal 008406AS 5/16-24.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG008406AS
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1175197
Vendor: Sussex Tool and Supply
$7.31

Description

REGAL 5/16"x24.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated H1/GH1 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Hand Tap
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 2.7180 69.04MM
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 4
Thread Pitch 24.00TPI
Thread Size 5/16"
Tap Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Square 0.2380
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H1/GH1
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
