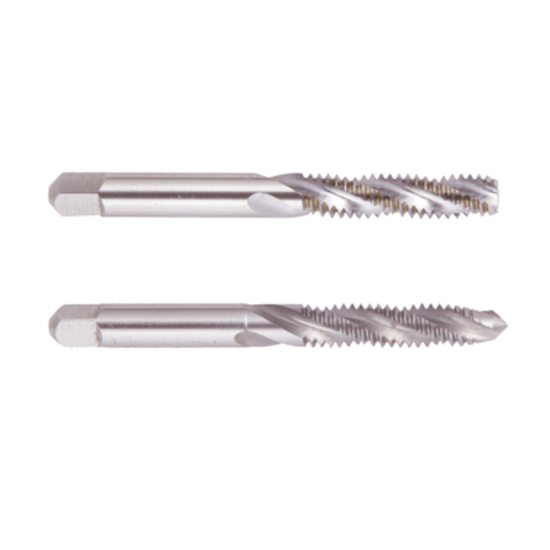

REGAL 008398AS 5/16-18.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008398AS
Delivery date: 3-5 days
$15.34

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Thread Size 5/16"
Shank/Pilot Dia 0.3180 8.08MM
Length Type Standard
Thread Pitch 18.00TPI
Tap Chamfer 4.0P-5.0P
Flutes/Inserts 3
Tool Material Steel
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Square 0.2380
Tap Type Plug
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Overall Len 2.7180 69.04MM
Tap Style Hand Tap
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
