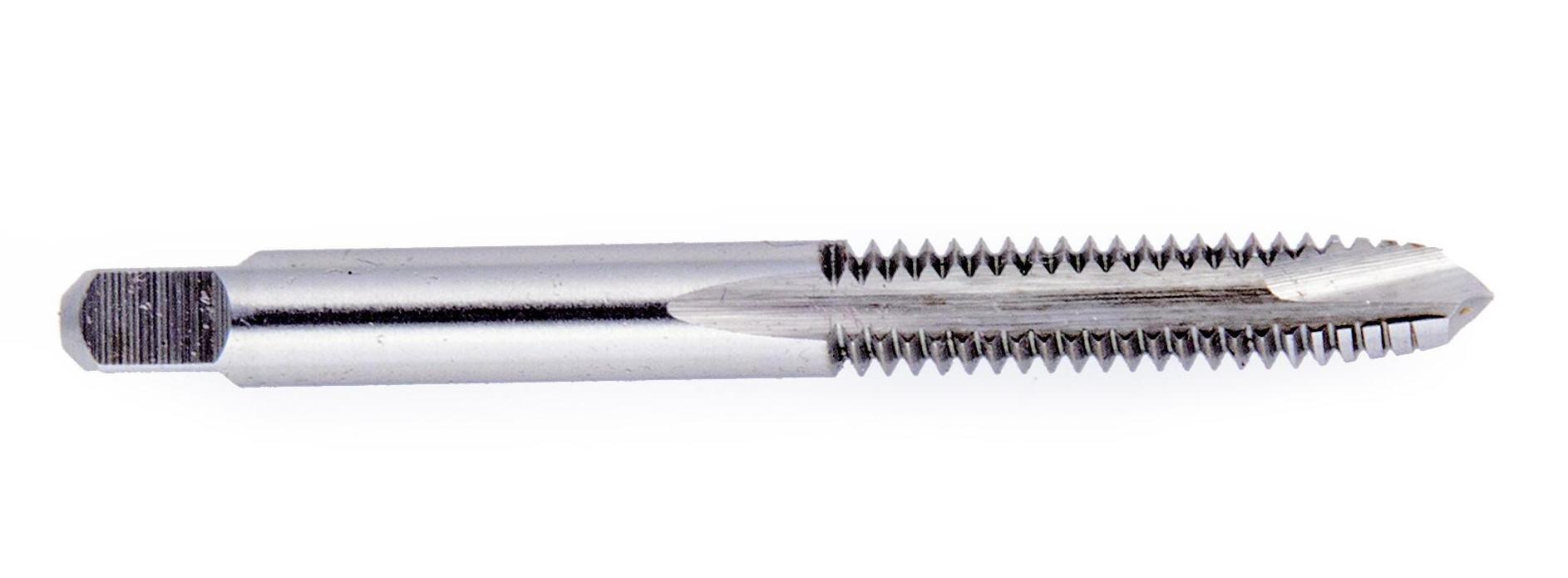

Picture of Regal 008366AS 1/4-28.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Regal 008366AS 1/4-28.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Part Number: REG008366AS
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1175485
Vendor: Sussex Tool and Supply
$6.73

Description

REGAL 1/4"x28.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated H4/GH4 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 28.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1/4"
Thread Limit H4/GH4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Tap Square 0.1910
Tap Chamfer 4.0P-5.0P
