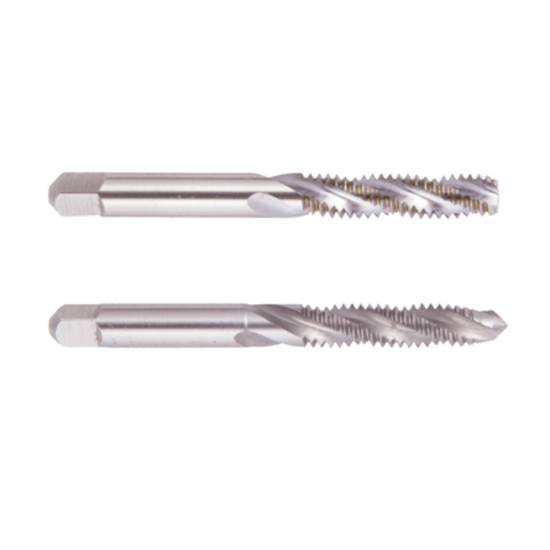

REGAL 008342AS 1/4-20.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008342AS
Delivery date: 3-5 days
$12.26

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Thread Size 1/4"
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 1.0P-2.0P
Tool Material Steel
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Flutes/Inserts 3
Shank/Pilot Dia 0.2550 6.48MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
