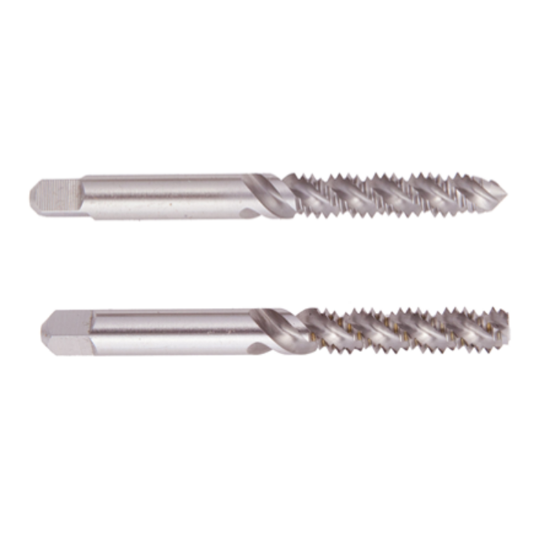

REGAL 008299AS No.12-24.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008299AS
Delivery date: 3-5 days
$12.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Shipping State Illinois
Performance Rating General Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Thread Size No.12
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Shank/Pilot Dia 0.2200 5.59MM
Tap Style Hand Tap
Machine Side Connection Type Tap Collet
Tool Material Steel
Tap Square 0.1650
Flute Direction R - Right
Length Type Standard
Thread Pitch 24.00TPI
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Tap Type Plug
Dimension Standard ANSI/ANSI
Drill Range 0.1724 4.38MM - 0.1835 4.66MM
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
