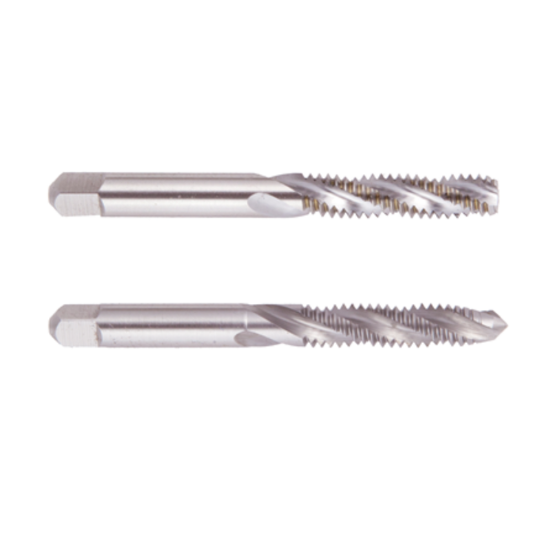

REGAL 008215AS No.8-36.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008215AS
Delivery date: 3-5 days
$11.73

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA Yes
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 2.1250 53.98MM
Tool Material Steel
Thread Size No.8
Thread Pitch 36.00TPI
Drill Range 0.1350 3.43MM - 0.1421 3.61MM
Tap Type Plug
Machine Side Connection Type Tap Collet
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 2
Tap Square 0.1310
Length Type Standard
Tap Style Hand Tap
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
