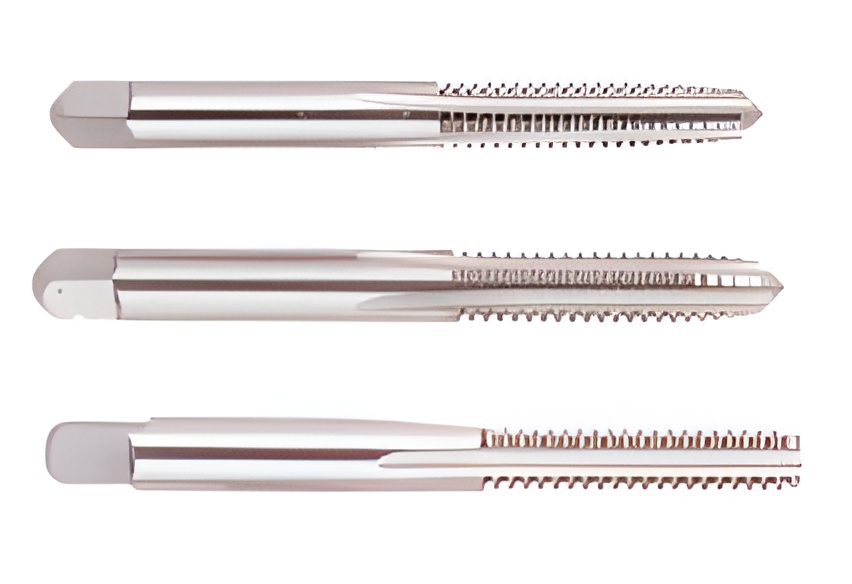

Picture of Regal 008201AS No.8-32.00TPI Over Sized Bottom Bottoming 1.0P-2.0P HSS Uncoated

Regal 008201AS No.8-32.00TPI Over Sized Bottom Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG008201AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175061
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL No.8x32.00TPI Over Sized Bottom Bottoming 1.0P-2.0P HSS Uncoated GH7 +0.0035 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.8
Thread Limit GH7 +0.0035
Tap Style Over Sized Bottom
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1310
Tap Chamfer 1.0P-2.0P
