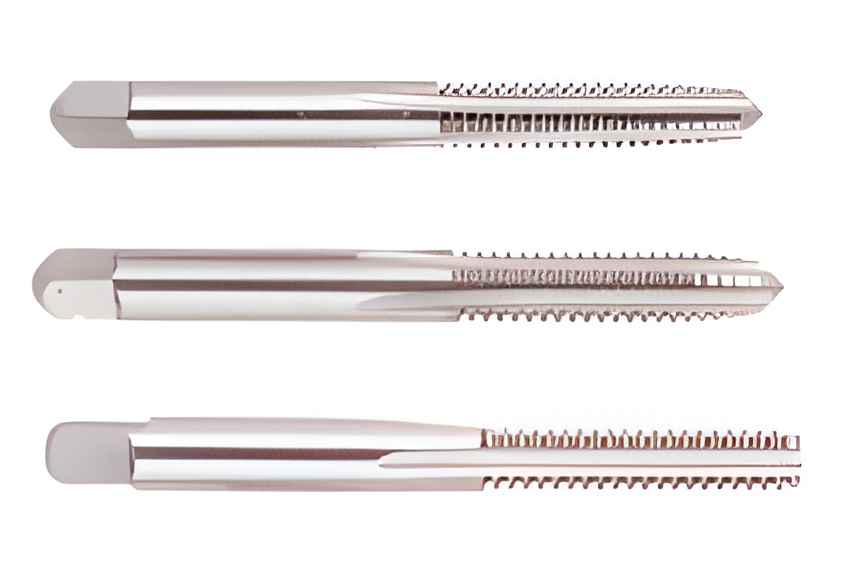

Picture of Regal 008200AS No.8-32.00TPI Over Sized Plug Plug 4.0P-5.0P HSS Uncoated

Regal 008200AS No.8-32.00TPI Over Sized Plug Plug 4.0P-5.0P HSS Uncoated

Part Number: REG008200AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$7.21
SKU: 1175060

Description

REGAL No.8x32.00TPI Over Sized Plug Plug 4.0P-5.0P HSS Uncoated GH7 +0.0035 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Over Sized Plug
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Size No.8
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1310
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit GH7 +0.0035
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
