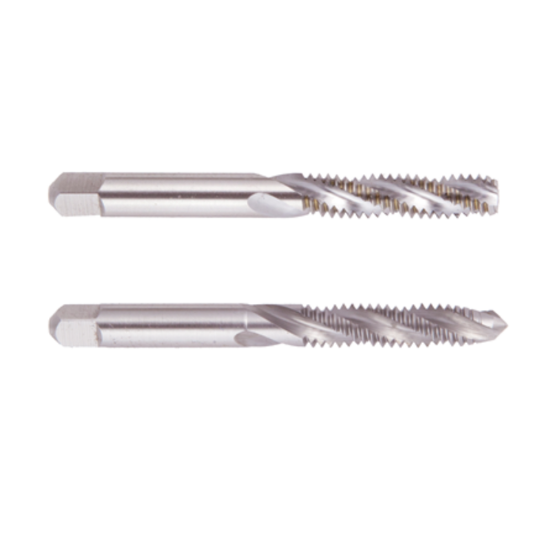

REGAL 008126AS No.5-40.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008126AS
Delivery date: 3-5 days
$14.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Shipping State Illinois
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tap Style Cut Spiral Flute
Tap Chamfer 1.0P-2.0P
Shank/Pilot Dia 0.1410 3.58MM
Tool Material Steel
Tap Square 0.1100
Tap Type Bottoming
Thread Size No.5
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Thread Pitch 40.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
