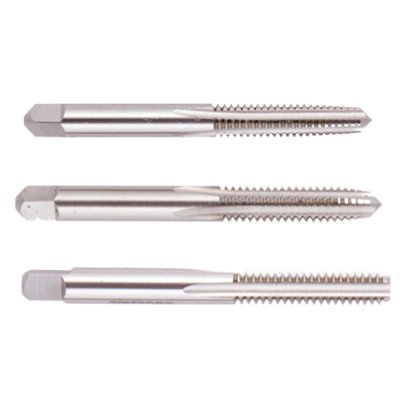

Picture of Regal 008088AS No.4-40.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Regal 008088AS No.4-40.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG008088AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$6.71
SKU: 1174994

Description

REGAL No.4x40.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Hand Tap
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 1.8750 47.63MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Thread Pitch 40.00TPI
Thread Size No.4
Tap Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
