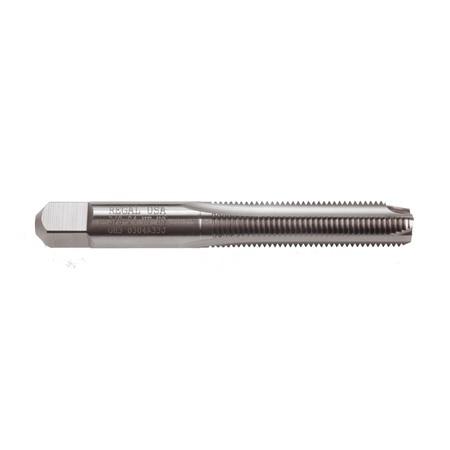

Picture of Regal 008052AS No.2-64.00TPI Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated

Regal 008052AS No.2-64.00TPI Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG008052AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$12.52
SKU: 1175418

Description

REGAL No.2x64.00TPI Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 64.00TPI
Thread Size No.2
Tap Drill Range 0.0689 1.75MM - 0.0736 1.87MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
