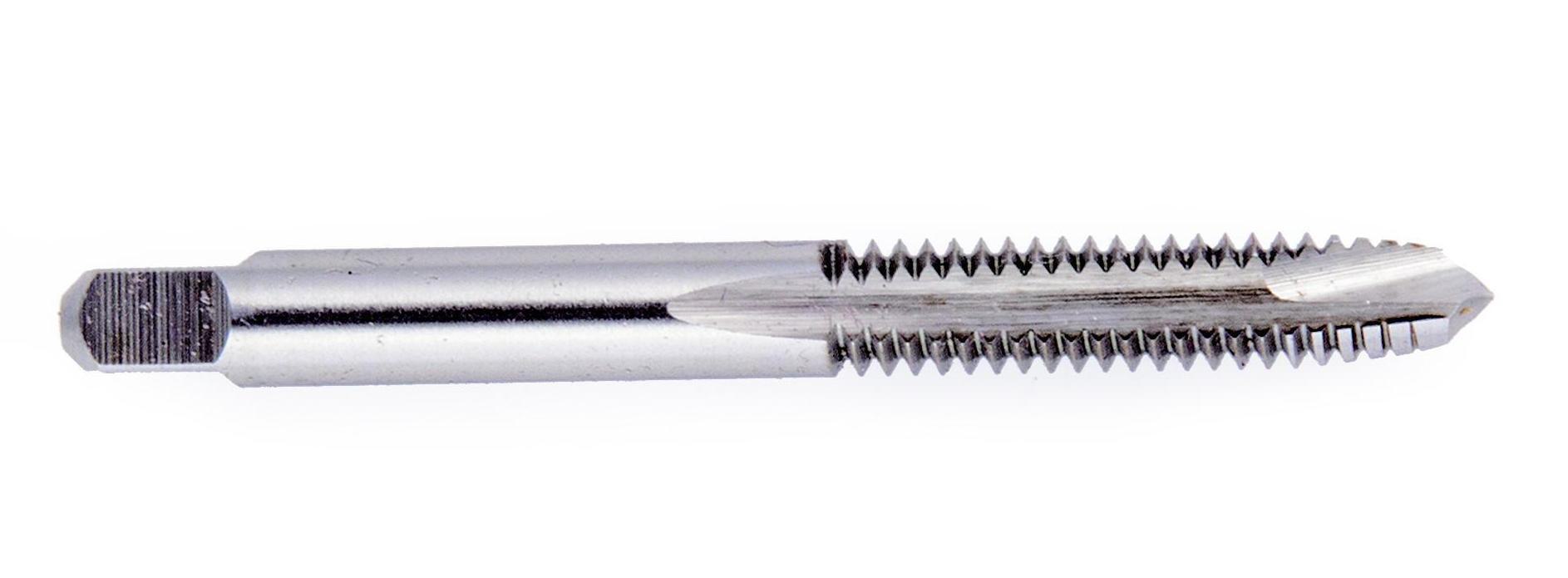

Picture of Regal 008027AS No.1-72.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Regal 008027AS No.1-72.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Part Number: REG008027AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$14.96
SKU: 1175411

Description

REGAL No.1x72.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 1.6880 42.88MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 72.00TPI
Thread Size No.1
Tap Drill Range 0.0583 1.48MM - 0.0622 1.58MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
