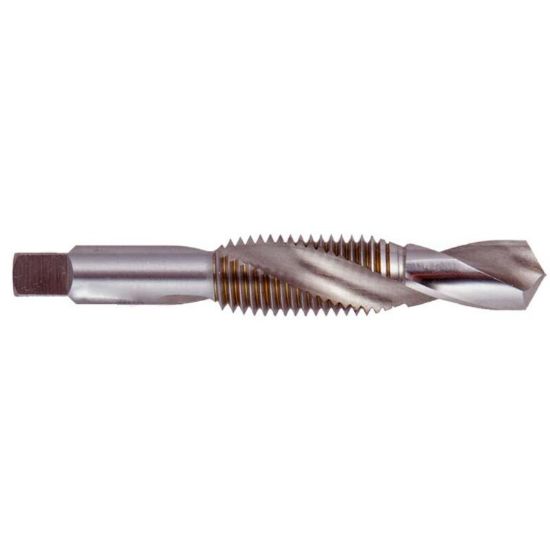

REGAL 007562AS 1-11.50TPI Drill & Tap HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG007562AS
Delivery date: 3-5 days
$395.23

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Drill Tap Comb
Performance Rating General Performance
Shipping State Illinois
Made In USA Yes
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Overall Len 5.3750 136.53MM
Thread Type NPT/NPTF/ANPT
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Tap Square 0.8430
Machine Side Connection Type Tap Collet
Thread Size 1"
Thread Pitch 11.50TPI
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Limit PIPE
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Tap Style Drill & Tap
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
