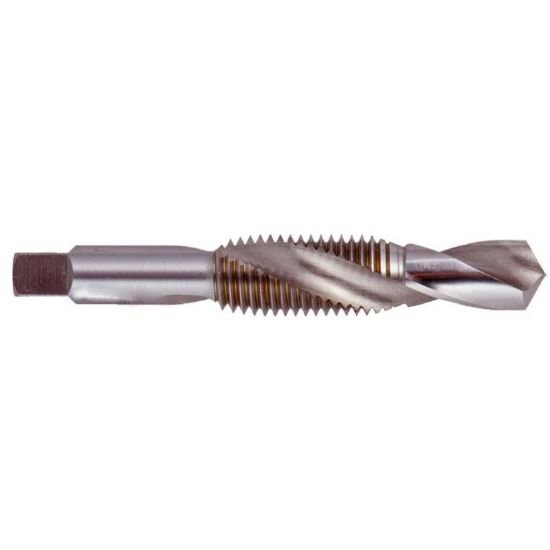

Picture of Regal 007556AS 3/8-18.00TPI Drill & Tap HSS Uncoated

Regal 007556AS 3/8-18.00TPI Drill & Tap HSS Uncoated

Part Number: REG007556AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$155.61
SKU: 1176036

Description

REGAL 3/8"x18.00TPI Drill & Tap HSS Uncoated PIPE NPT/NPTF/ANPT Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Drill & Tap
Dimensions & Sizing
Overall Length 3.5430 89.99MM
Shank/Pilot Dia 0.7000 17.78MM
Flutes/Inserts 4
Thread Pitch 18.00TPI
Thread Size 3/8"
Tap Square 0.5310
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
