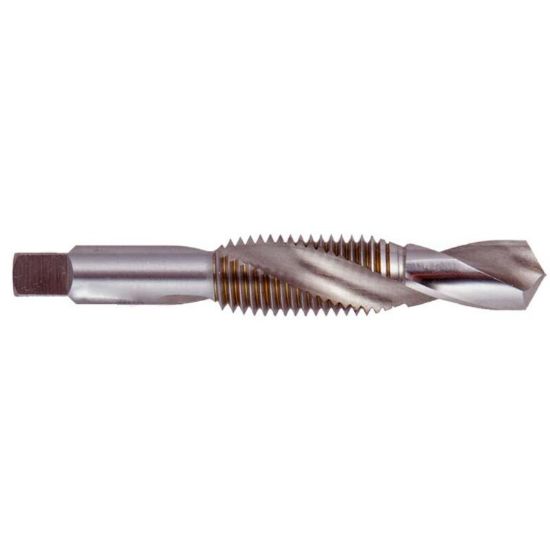

REGAL 007554AS 1/4-18.00TPI Drill & Tap HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG007554AS
Delivery date: 3-5 days
$110.54

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drill Tap Comb, Tapping
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Thread Size 1/4"
Shank/Pilot Dia 0.5620 14.27MM
Tap Style Drill & Tap
Machine Side Connection Type Tap Collet
Thread Pitch 18.00TPI
Thread Limit PIPE
Thread Type NPT/NPTF/ANPT
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Dimension Standard ANSI/ANSI
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Overall Len 3.3120 84.12MM
Tap Square 0.4210
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
