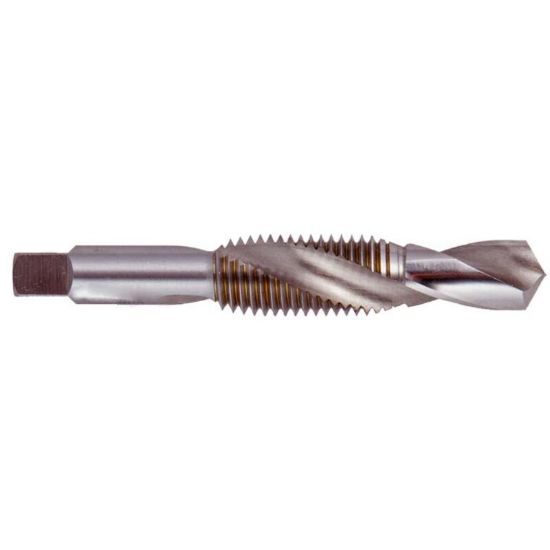

REGAL 007538AS 7/16-20.00TPI Drill & Tap HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG007538AS
Delivery date: 3-5 days
$42.84

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Made In USA Yes
Application Drill Tap Comb, Tapping
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 20.00TPI
Flutes/Inserts 2
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Thread Size 7/16"
Overall Len 3.7500 95.25MM
Tap Style Drill & Tap
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Square 0.2420
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
