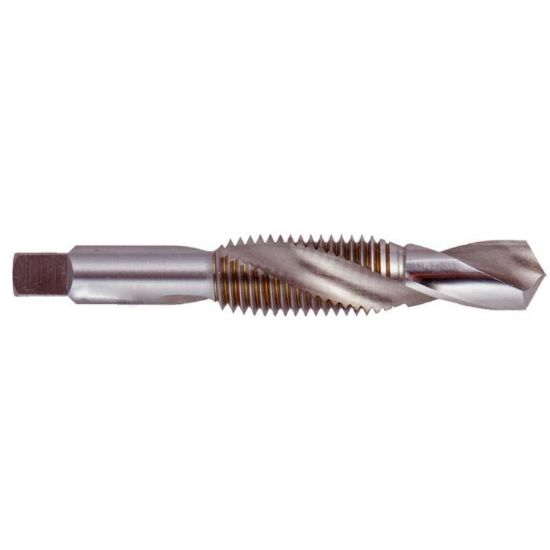

REGAL 007528AS 5/16-18.00TPI Drill & Tap HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG007528AS
Delivery date: 3-5 days
$22.84

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drill Tap Comb, Tapping
Made In USA Yes
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Tap Square 0.2380
Tap Style Drill & Tap
Thread Size 5/16"
Flute Direction R - Right
Length Type Standard
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 2
Overall Len 2.8430 72.21MM
Thread Pitch 18.00TPI
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
