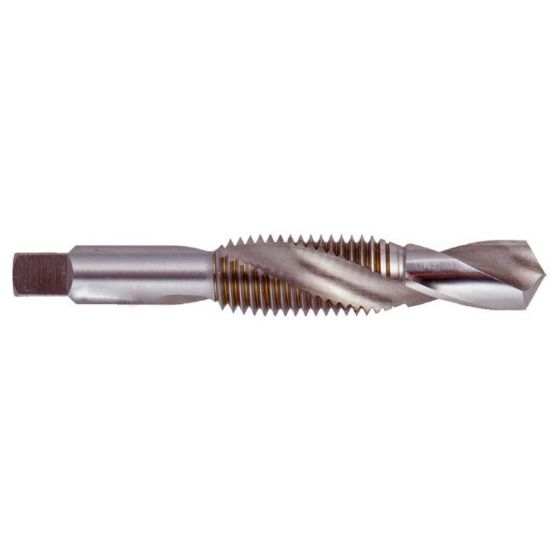

REGAL 007524AS 1/4-20.00TPI Drill & Tap HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG007524AS
Delivery date: 3-5 days
$19.16

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Shipping State Illinois
Application Drill Tap Comb, Tapping
Performance Rating General Performance
Dimensional Specifications
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Shank/Pilot Dia 0.2550 6.48MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Thread Size 1/4"
Tap Style Drill & Tap
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
