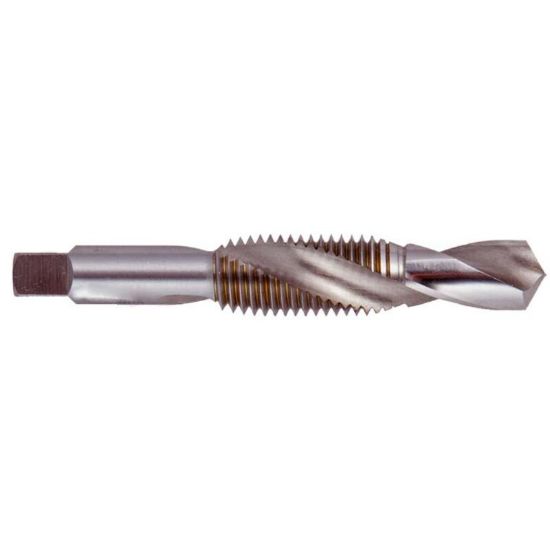

REGAL 007504AS No.5-40.00TPI Drill & Tap HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG007504AS
Delivery date: 3-5 days
$15.50

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Tapping, Drill Tap Comb
Performance Rating General Performance
Made In USA Yes
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.1410 3.58MM
Thread Type NC/UNC
Flutes/Inserts 2
Dimension Standard ANSI/ANSI
Thread Pitch 40.00TPI
Overall Len 1.9370 49.20MM
Tap Style Drill & Tap
Thread Size No.5
Thread Limit H3/GH3
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
