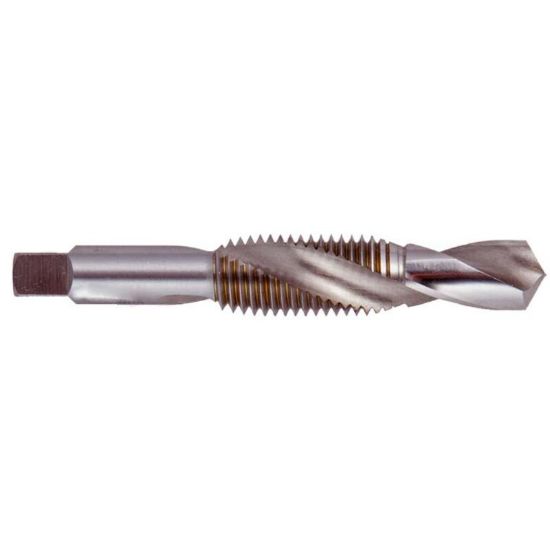

REGAL 007500AS No.4-40.00TPI Drill & Tap HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG007500AS
Delivery date: 3-5 days
$15.50

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drill Tap Comb, Tapping
Made In USA Yes
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Thread Pitch 40.00TPI
Dimension Standard ANSI/ANSI
Tap Style Drill & Tap
Shank/Pilot Dia 0.1410 3.58MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Tap Square 0.1100
Length Type Standard
Thread Size No.4
Machine Side Connection Type Tap Collet
Overall Len 1.8750 47.63MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
