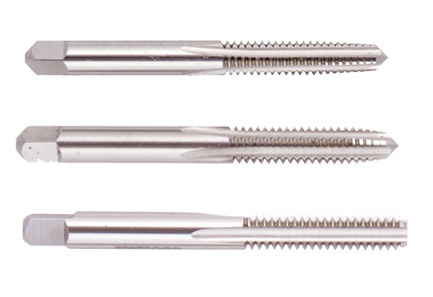

Picture of Regal 007075AS No.2-56.00TPI STI Bottoming 1.0P-2.0P HSS Uncoated

Regal 007075AS No.2-56.00TPI STI Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG007075AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$17.64
SKU: 1176321

Description

REGAL No.2x56.00TPI STI Bottoming 1.0P-2.0P HSS Uncoated H1/GH1 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style STI
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 1.8750 47.63MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 56.00TPI
Thread Size No.2
Tap Drill Range 0.0906 2.30MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H1/GH1
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
