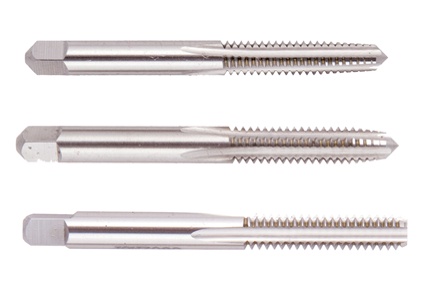

Picture of Regal 007072AS 1/2-20.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Regal 007072AS 1/2-20.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Part Number: REG007072AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$17.64
SKU: 1176319

Description

REGAL 1/2"x20.00TPI STI Plug 4.0P-5.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style STI
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 3.4060 86.51MM
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 3
Thread Pitch 20.00TPI
Thread Size 1/2"
Tap Drill Range 0.5157 13.10MM
Tap Square 0.3220
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
