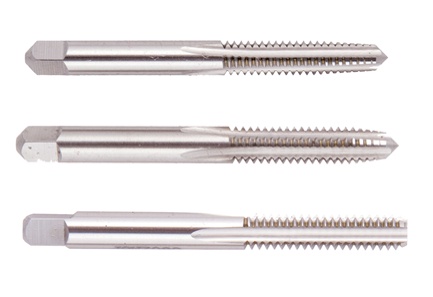

Picture of Regal 007070AS 1/2-13.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Regal 007070AS 1/2-13.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Part Number: REG007070AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$15.01
SKU: 1176318

Description

REGAL 1/2"x13.00TPI STI Plug 4.0P-5.0P HSS Uncoated H4/GH4 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style STI
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 3.4060 86.51MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Thread Pitch 13.00TPI
Thread Size 1/2"
Tap Drill Range 0.5236 13.30MM
Tap Square 0.3600
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H4/GH4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
