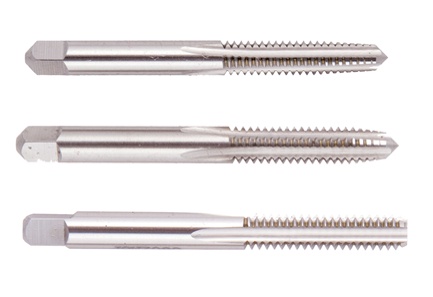

Picture of Regal 007057AS 3/8-16.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Regal 007057AS 3/8-16.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Part Number: REG007057AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176309
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL 3/8"x16.00TPI STI Plug 4.0P-5.0P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 3.3750 85.73MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit H3/GH3
Tap Style STI
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3937 10.00MM
Tap Square 0.2750
Tap Chamfer 4.0P-5.0P
