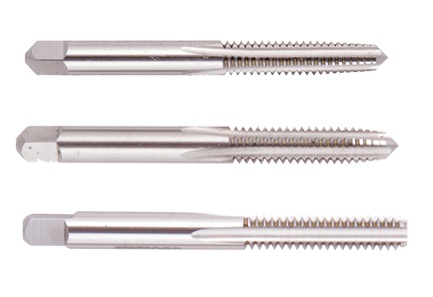

Picture of Regal 007028AS No.6-32.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Regal 007028AS No.6-32.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Part Number: REG007028AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$12.57
SKU: 1176290

Description

REGAL No.6x32.00TPI STI Plug 4.0P-5.0P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style STI
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 2
Thread Pitch 32.00TPI
Thread Size No.6
Tap Drill Range 0.1457 3.70MM
Tap Square 0.1310
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
