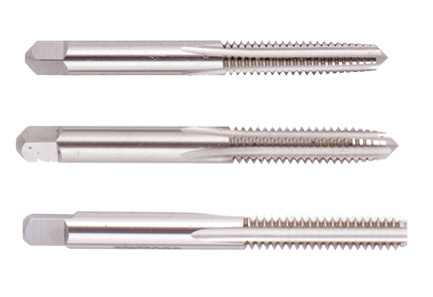

Picture of Regal 007015AS No.2-56.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Regal 007015AS No.2-56.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Part Number: REG007015AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176282
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL No.2x56.00TPI STI Plug 4.0P-5.0P HSS Uncoated H1/GH1 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 1.8750 47.63MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 56.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.2
Thread Limit H1/GH1
Tap Style STI
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0906 2.30MM
Tap Square 0.1100
Tap Chamfer 4.0P-5.0P
