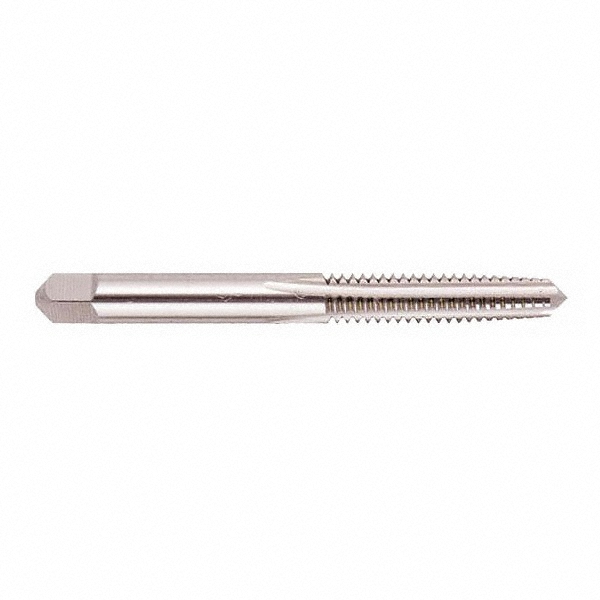

Picture of Regal 007013AS 1-14.00TPI STI Bottoming 1.0P-2.0P HSS Uncoated

Regal 007013AS 1-14.00TPI STI Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG007013AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176281
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL 1"x14.00TPI STI Bottoming 1.0P-2.0P HSS Uncoated H6/GH6 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 5.4370 138.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8960 22.76MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 14.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1"
Thread Limit H6/GH6
Tap Style STI
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 1.0335 26.25MM
Tap Square 0.6720
Tap Chamfer 1.0P-2.0P
