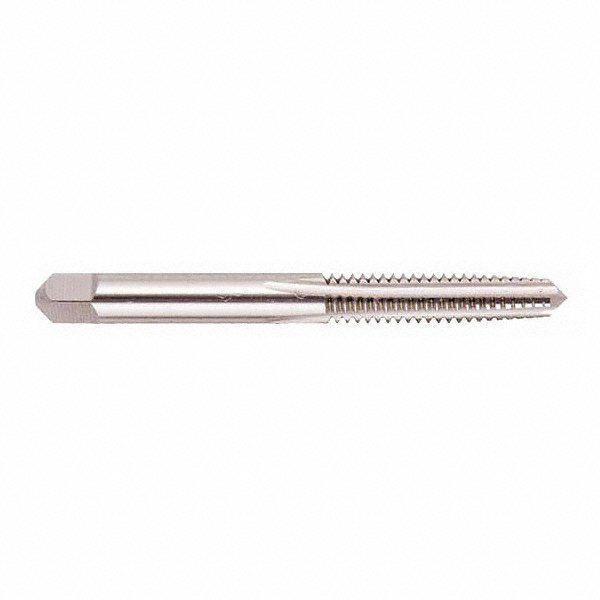

Picture of Regal 007001AS 7/8-14.00TPI STI Bottoming 1.0P-2.0P HSS Uncoated

Regal 007001AS 7/8-14.00TPI STI Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG007001AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$12.08
SKU: 1176274

Description

REGAL 7/8"x14.00TPI STI Bottoming 1.0P-2.0P HSS Uncoated H4/GH4 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style STI
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 5.1250 130.18MM
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 4
Thread Pitch 14.00TPI
Thread Size 7/8"
Tap Drill Range 22.7500 577.85MM
Tap Square 0.6000
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H4/GH4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
