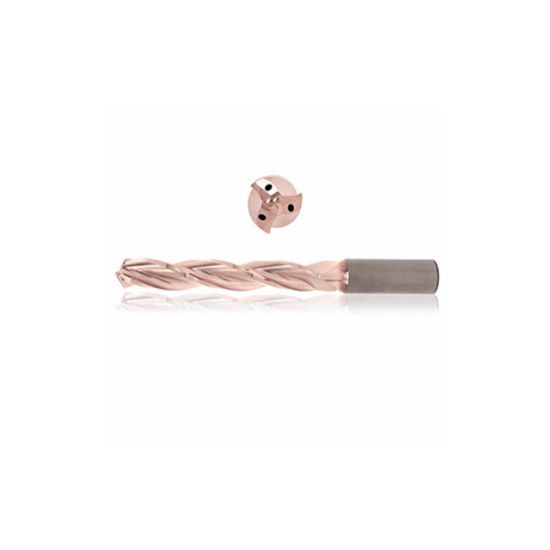

PCT CXC512000T6 Carbide Drill Coolant Thru 130° ZrCN 0.472 Diameter Cylindrical 0.472 Shank 4.645 OAL 3 Flute 2.795 Flute Length 5.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: PCT
SKU: PRECXC512000T6
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

ZrCN has an excellent resistance against corrosion and abrasive wear, characterized by its high hardness, by its tribological properties and by its toughness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Coating ZrCN
Application Drilling, Drilling Thru Coolant
Shipping State California
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Overall Len 4.6457 118.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Included Angle 130°
Cut Rating Aluminum, Brass, Plastic, Copper
Cutter Dia 0.4724 12.00MM
Cut Dia Min 0.4724 12.00MM
Flutes/Inserts 3
Dia Deep 5.0XD
Flute Length 2.7950 70.99MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
