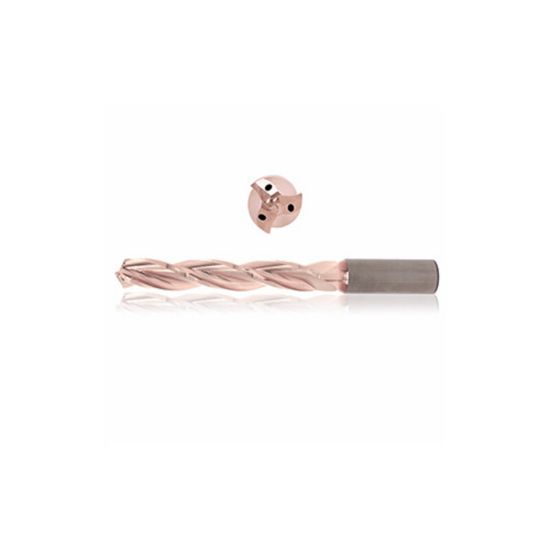

PCT CXC311500T6 Carbide Drill Coolant Thru 130° ZrCN 0.452 Diameter Cylindrical 0.472 Shank 4.015 OAL 3 Flute 2.165 Flute Length 3.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: PCT
SKU: PRECXC311500T6
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

ZrCN has an excellent resistance against corrosion and abrasive wear, characterized by its high hardness, by its tribological properties and by its toughness.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Drilling Thru Coolant
Shipping State California
Coating ZrCN
Made In USA Yes
Package Size 1
Dimensional Specifications
Tool Material Carbide
Flute Length 2.1650 54.99MM
Cut Dia Min 0.4528 11.50MM
Overall Len 4.0157 102.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Dia Deep 3.0XD
Included Angle 130°
Cutter Dia 0.4528 11.50MM
Machine Side Connection Size 0.4724 12.00MM
Cut Rating Aluminum, Brass, Plastic, Copper
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
