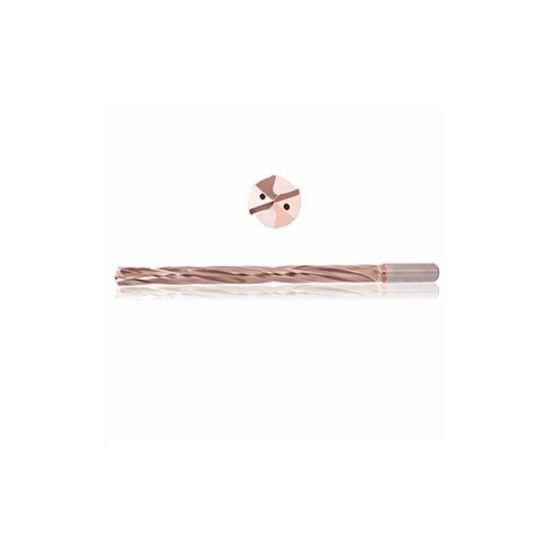

PCT AXC312303T6 Deep Hole Coolant Thru 135° ZrCN 0.484 Diameter Cylindrical 0.551 Shank 4.212 OAL 2 Flute 2.362 Flute Length 3.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: PCT
SKU: PREAXC312303T6
Delivery date: 3-5 days
$219.93

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

ZrCN has an excellent resistance against corrosion and abrasive wear, characterized by its high hardness, by its tribological properties and by its toughness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Coating ZrCN
Application Drilling, Drilling Thru Coolant
Shipping State California
Dimensional Specifications
Shank/Pilot Dia 0.5512 14.00MM
Overall Len 4.2126 107.00MM
Machine Side Connection Size 0.5512 14.00MM
Cutter Dia 0.4844 12.30MM - 31/64
Flutes/Inserts 2
Cut Dia Min 0.4844 12.30MM - 31/64
Flute Length 2.3620 59.99MM
Cut Rating Aluminum, Brass, Plastic, Copper
Included Angle 135°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dia Deep 3.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
