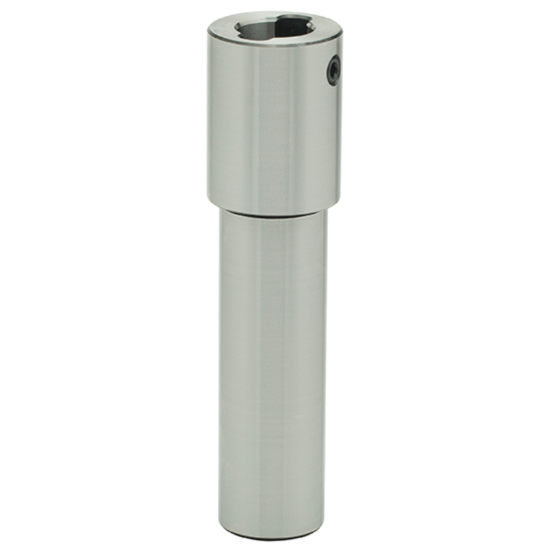

Picture of PARLEC S12-PC6-4 Boring Head Shank

PARLEC S12-PC6-4 Boring Head Shank

ANSI: S12-PC6-4

ISO: S12-PC6-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: PARLEC
SKU: TECS12-PC6-4
Delivery date: 3-5 days
$500.00

Details

1 1/4" Straight Shank PC6 Modular Boring Tool Shank 2.00" Projection 4.705" Maximum Bore Depth

Products specifications
Attribute name Attribute value
General Product Information
Application Mill Boring
Made In USA Yes
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Cutter Dia 2.5200 64.01MM
Neck Length 4.7000 119.38MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Over Hang 2.0000
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cool Sply Type Through
Coolant Thru Yes
