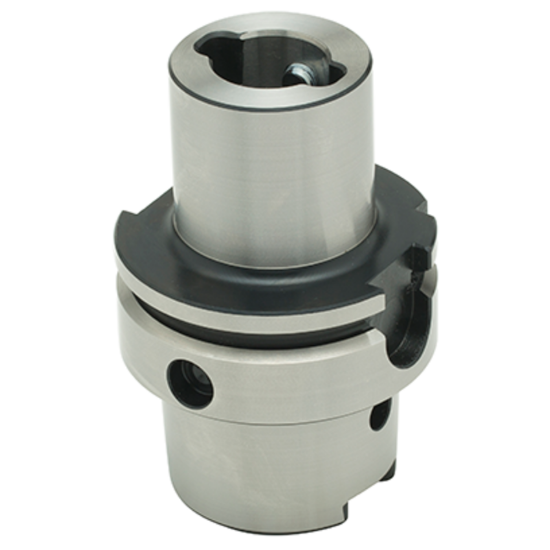

Picture of PARLEC H63A-PC4-178 Boring Head Machine Taper

PARLEC H63A-PC4-178 Boring Head Machine Taper

ANSI: H63A-PC4-178

ISO: H63A-PC4-178

Need Assistance or Service? Please call 262-251-4020

Manufacturer: PARLEC
SKU: TECH63A-PC4-178
Delivery date: 3-5 days
$673.00

Features And Benefits

Coolant Tube needed for coolant through

Details

HSK 63 A Taper PC4 Modular Boring Tool Shank 6.00" Projection 6.59" Maximum Bore Depth

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Package Size 1
Application Mill Boring
Made In USA Yes
Insert/Tool Tool
Dimensional Specifications
Neck Length 7.8500 199.39MM
Machine Side Connection Type HSK
Tool Material Steel
Cutter Dia 1.5400 39.12MM
Tool Over Hang 6.0000
Machine Side Connection Size 2.4803 63.00MM
Cutting & Machining Properties
Cool Sply Type Through
Coolant Thru Yes
