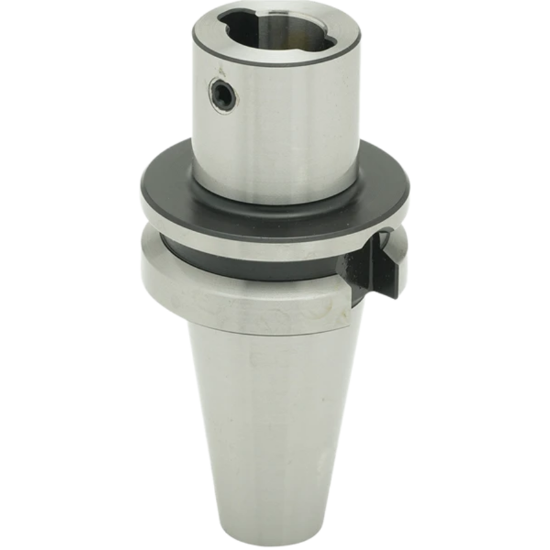

Picture of PARLEC B40-PC5-3 Boring Head Machine Taper

PARLEC B40-PC5-3 Boring Head Machine Taper

ANSI: B40-PC5-3

ISO: B40-PC5-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: PARLEC
SKU: TECB40-PC5-3
Delivery date: 3-5 days
$293.00

Features And Benefits

Retention Knob needed

Details

BT40 PC5 Modular Boring Tool Shank 2.16" Projection 3.24" Maximum Bore Depth

Modular Boring System Component

Products specifications
Attribute name Attribute value
General Product Information
Application Mill Boring
Made In USA Yes
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cutter Dia 1.9700 50.04MM
Tool Over Hang 2.1600
Machine Side Connection Size 1.5748 40.00MM
Neck Length 3.2400 82.30MM
Tool Material Steel
Machine Side Connection Type BT
Cutting & Machining Properties
Cool Sply Type Through
Coolant Thru Yes
