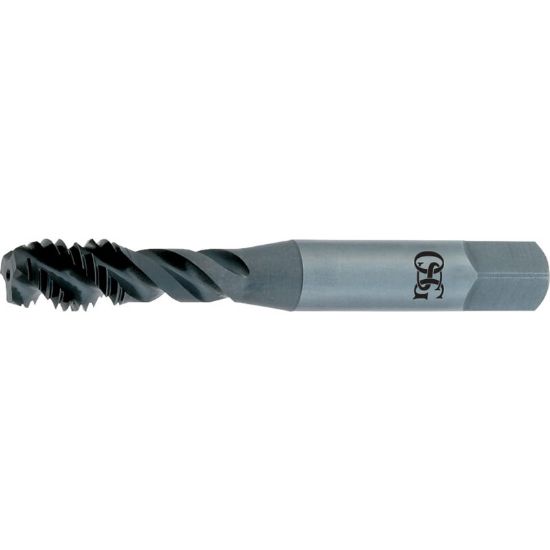

OSG 2992901 M16-2.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2992901
Delivery date: 3-5 days
$76.39

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Package Size 1
Coating Steam Oxide
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 2.00MM
Shank/Pilot Dia 0.4799 12.19MM
Tap Style Cut Spiral Flute
Dimension Standard ANSI/ANSI
Overall Len 3.7795 96.00MM
Flutes/Inserts 3
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 2.5P-3.0P
Thread Limit D7
Tap Square 0.3600
Thread Size M16
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
