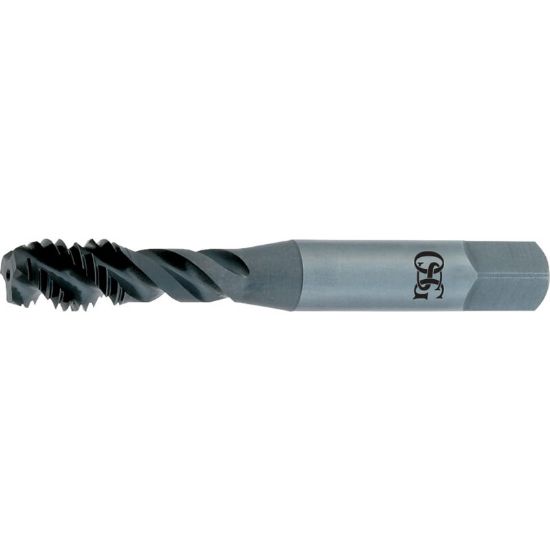

OSG 2992101 M12-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2992101
Delivery date: 3-5 days
$43.12

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Coating Steam Oxide
Dimensional Specifications
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 2.5P-3.0P
Thread Limit D5
Machine Side Connection Type Tap Collet
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3669 9.32MM
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Flute Direction R - Right
Length Type Standard
Tap Square 0.2750
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Overall Len 3.3465 85.00MM
Thread Size M12
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
