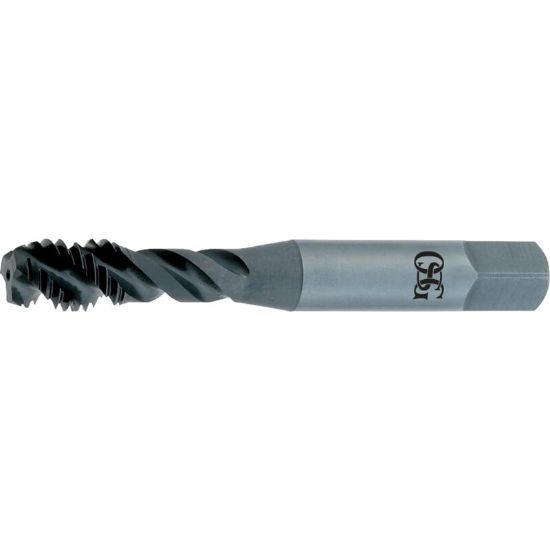

OSG 2991401 M8-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2991401
Delivery date: 3-5 days
$25.38

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Steam Oxide
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Tap Style Cut Spiral Flute
Tool Material Steel
Thread Size M8
Tap Square 0.2380
Thread Limit D5
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3177 8.07MM
Tap Type Mod Bottom
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.7165 69.00MM
Tap Chamfer 2.5P-3.0P
Thread Pitch 1.25MM
Flutes/Inserts 3
Flute Direction R - Right
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
