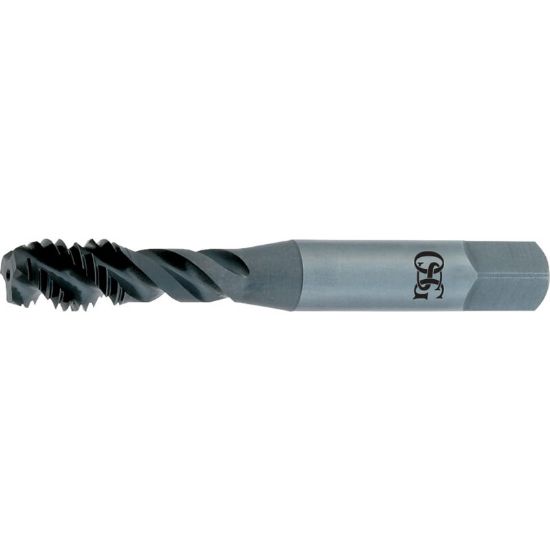

OSG 2990801 M5-0.80MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2990801
Delivery date: 3-5 days
$23.41

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Steam Oxide
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Overall Len 2.3622 60.00MM
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1937 4.92MM
Tap Type Mod Bottom
Tap Style Cut Spiral Flute
Thread Pitch 0.80MM
Tap Square 0.1520
Thread Size M5
Flutes/Inserts 3
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 2.5P-3.0P
Thread Limit D4
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
