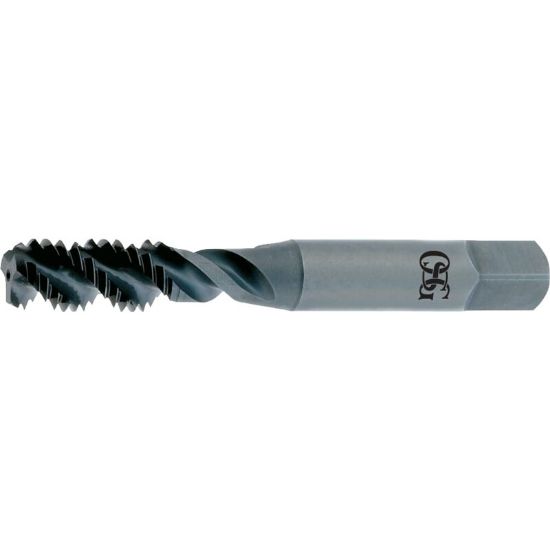

OSG 2986201 1/2-13.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2986201
Delivery date: 3-5 days
$23.35

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Cut Tapping, Bottom Tapping, Tapping
Coating Steam Oxide
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 13.00TPI
Thread Type NC/UNC
Thread Size 1/2"
Tool Material Steel
Machine Side Connection Type Tap Collet
Thread Limit 2B
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3750 85.73MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.2750
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
