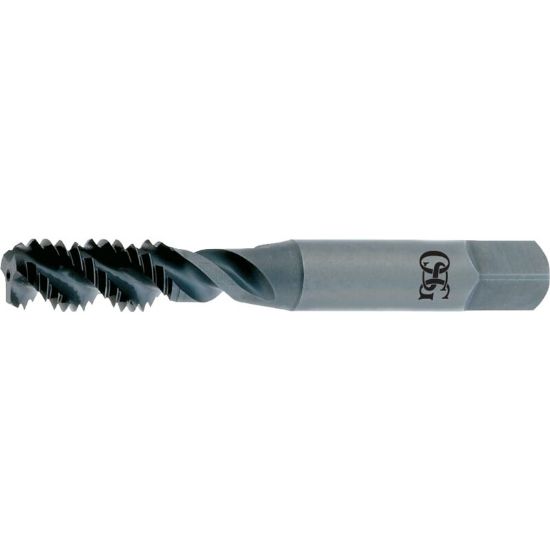

OSG 2985701 1/4-28.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2985701
Delivery date: 3-5 days
$9.27

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Pitch 28.00TPI
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Shank/Pilot Dia 0.2550 6.48MM
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tool Material Steel
Thread Size 1/4"
Thread Limit 2B
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
