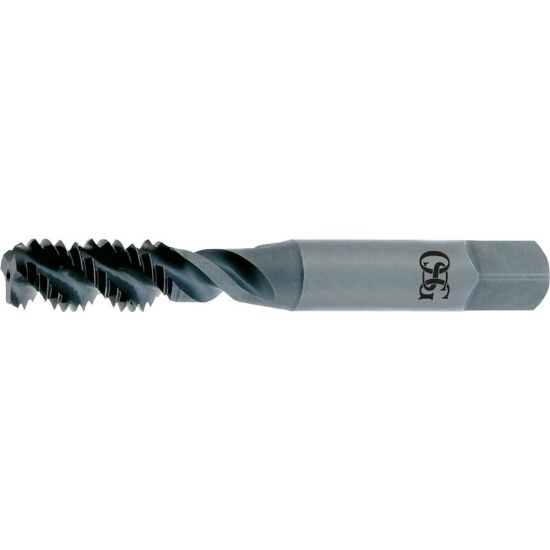

OSG 2985601 1/4-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2985601
Delivery date: 3-5 days
$9.27

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Bottom Tapping, Tapping
Coating Steam Oxide
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Size 1/4"
Thread Limit 2B
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Thread Pitch 20.00TPI
Thread Type NC/UNC
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
