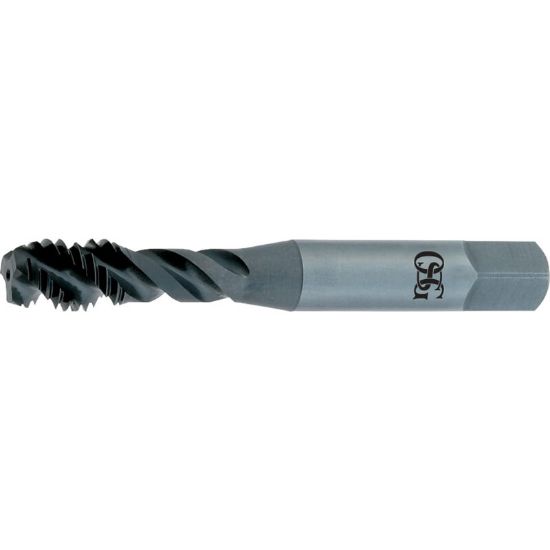

OSG 2942101 3/8-16.00TPI Over Sized Mod Bottom Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2942101
Delivery date: 3-5 days
$25.59

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Blind Hole Tapping, Mod Bottom Tapping, Over Sized Tapping, Tapping
Shipping State Illinois
Made In USA No
Coating Steam Oxide
Performance Rating General Performance
Dimensional Specifications
Tap Style Over Sized Mod Bottom
Thread Limit GH7 +0.0035
Tool Material Steel
Shank/Pilot Dia 0.3800 9.65MM
Overall Len 2.9370 74.60MM
Thread Size 3/8"
Thread Type NC/UNC
Flute Direction R - Right
Length Type Standard
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 2.5P-3.0P
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Machine Side Connection Type Tap Collet
Tap Square 0.2850
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
