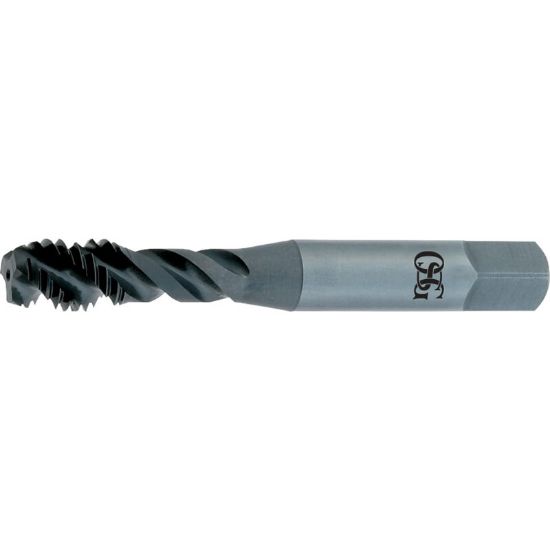

OSG 2941601 3/8-16.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2941601
Delivery date: 3-5 days
$25.59

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Coating Steam Oxide
Dimensional Specifications
Thread Pitch 16.00TPI
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Tap Square 0.2850
Tool Material Steel
Flute Direction R - Right
Shank/Pilot Dia 0.3800 9.65MM
Overall Len 2.9370 74.60MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Size 3/8"
Thread Type NC/UNC
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
