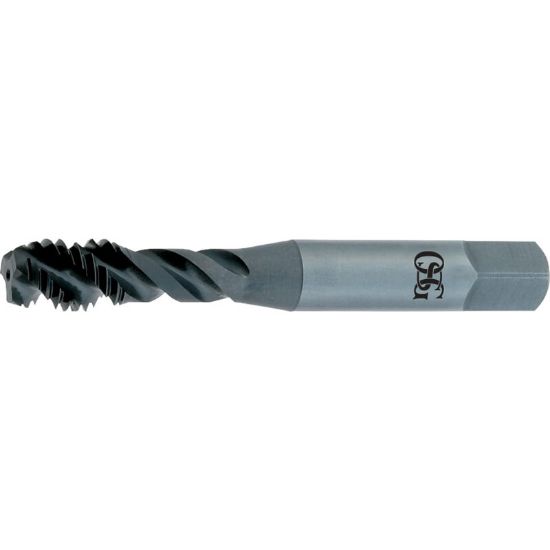

OSG 2940800 5/16-18.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2940800
Delivery date: 3-5 days
$22.02

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Flute Direction R - Right
Shank/Pilot Dia 0.3170 8.05MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Thread Size 5/16"
Tool Material Steel
Overall Len 2.7200 69.09MM
Flutes/Inserts 3
Tap Square 0.2380
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 2.5P-3.0P
Thread Pitch 18.00TPI
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
