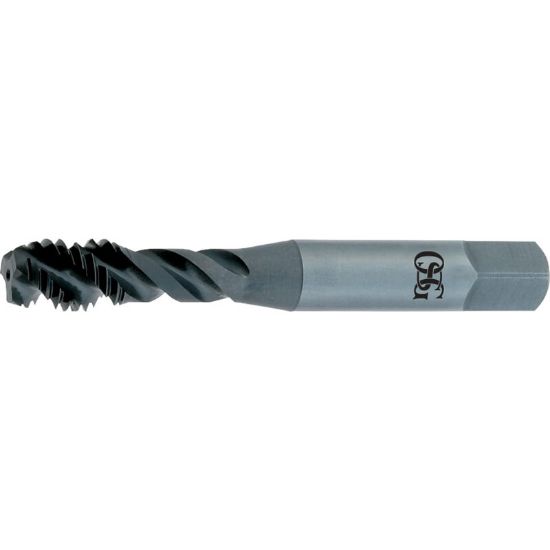

OSG 2940601 1/4-28.00TPI Over Sized Mod Bottom Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2940601
Delivery date: 3-5 days
$17.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Over Sized Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Package Size 1
Shipping State Illinois
Coating Steam Oxide
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 28.00TPI
Flutes/Inserts 3
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Flute Direction R - Right
Length Type Standard
Thread Size 1/4"
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.1900
Tap Chamfer 2.5P-3.0P
Thread Limit GH7 +0.0035
Shank/Pilot Dia 0.2550 6.48MM
Tap Style Over Sized Mod Bottom
Tool Material Steel
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Type Mod Bottom
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
