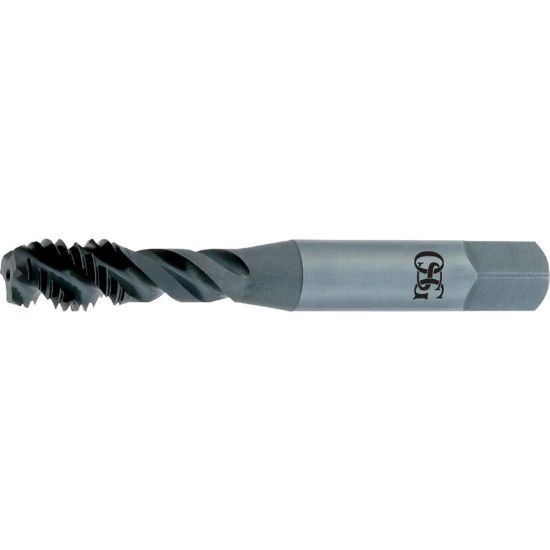

OSG 2933601 3/4-10.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2933601
Delivery date: 3-5 days
$102.04

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Mod Bottom Tapping, Tapping, Cut Tapping
Performance Rating General Performance
Coating Steam Oxide
Package Size 1
Dimensional Specifications
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Thread Pitch 10.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 2.5P-3.0P
Tool Material Steel
Thread Size 3/4"
Shank/Pilot Dia 0.5900 14.99MM
Thread Type NC/UNC
Thread Limit H3/GH3
Overall Len 4.2500 107.95MM
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
