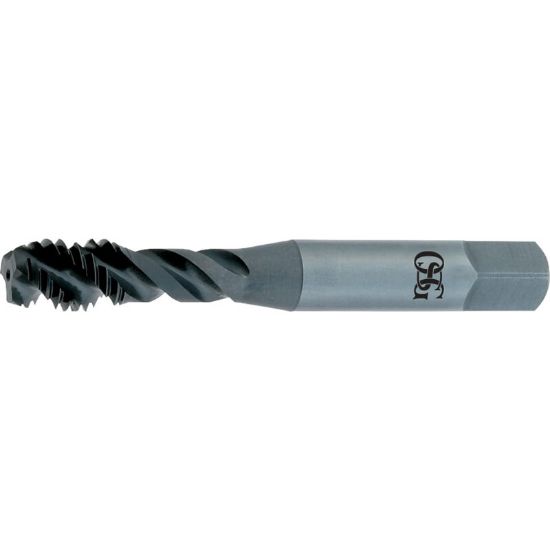

OSG 2919001 No.10-32.00TPI Over Sized Mod Bottom Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2919001
Delivery date: 3-5 days
$16.50

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Coating Steam Oxide
Application Blind Hole Tapping, Mod Bottom Tapping, Over Sized Tapping, Tapping
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Thread Limit GH7 +0.0035
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Flute Direction R - Right
Tap Square 0.1510
Length Type Standard
Tool Material Steel
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Over Sized Mod Bottom
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
