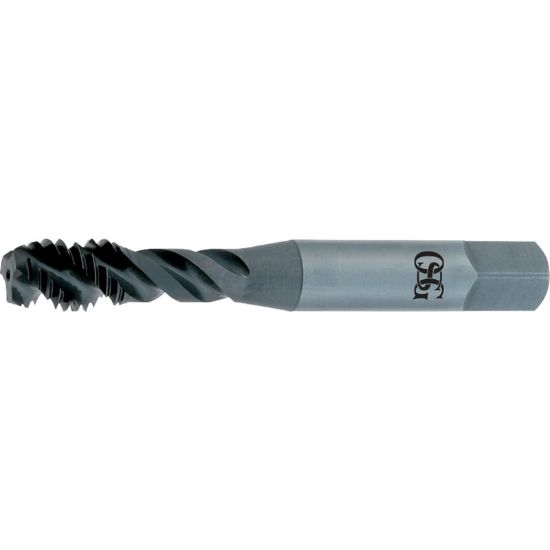

OSG 2912801 No.8-32.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: OSG2912801
Delivery date: 3-5 days
$16.50

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Dimensional Specifications
Thread Size No.8
Machine Side Connection Type Tap Collet
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 2.5P-3.0P
Thread Type NC/UNC
Thread Limit H3/GH3
Shank/Pilot Dia 0.1670 4.24MM
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Tap Square 0.1310
Length Type Standard
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
